Twelve tools.
Nothing hired in.

The load-out on the home page says what comes off the truck. This says what each thing is for: what it does to your slab, and what a floor laid without it does eighteen months later. Every plate is here to be checked against what turns up on the day.

Four groups · cut · mix · lay · protectOwned outright · nothing hired

The register

Twelve plates, one frame, one size, read in the order they touch the concrete.

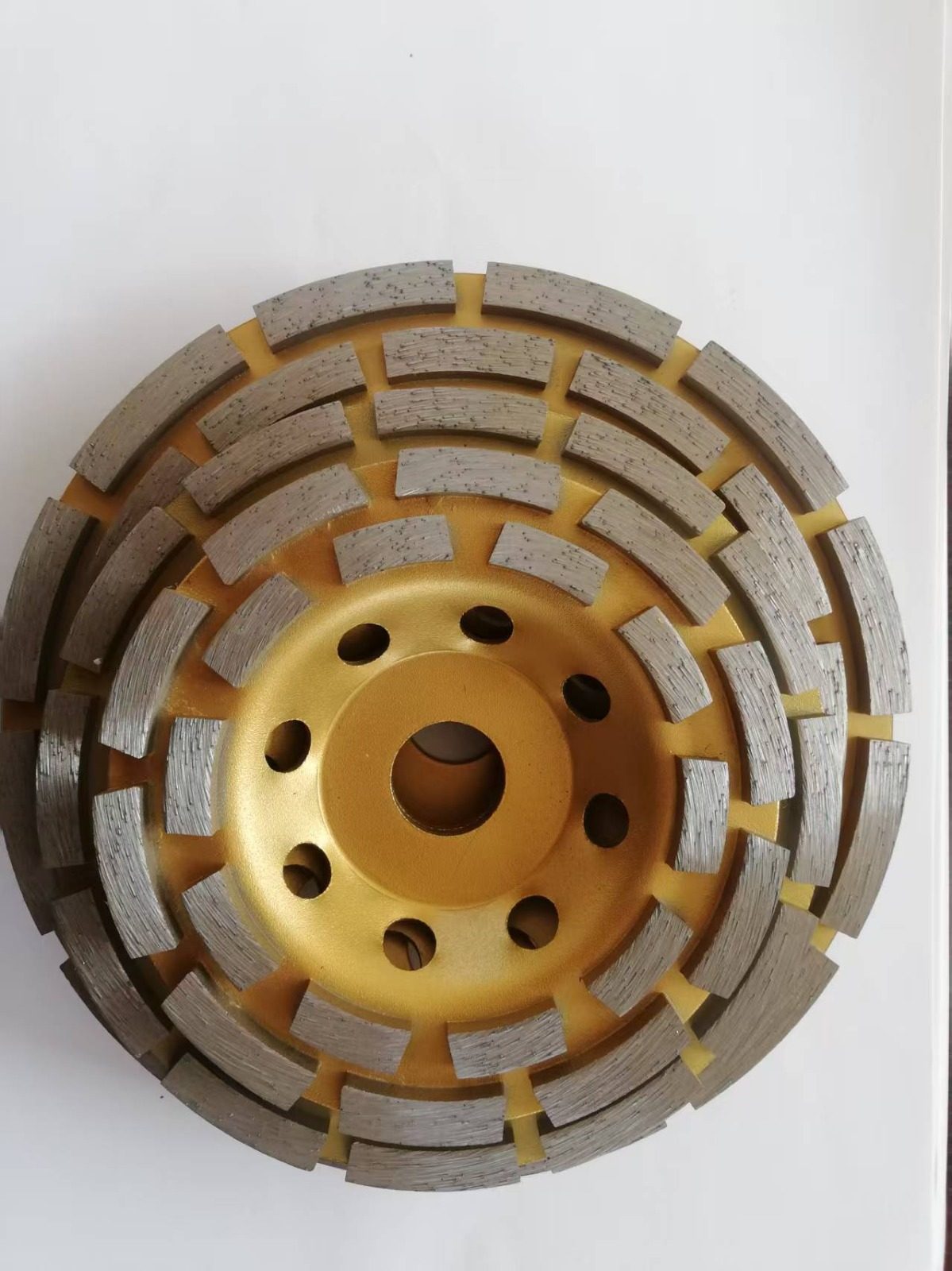

  1. 01A round double-row diamond cup wheel, gold-painted with two concentric rings of diamond segmentsDouble-row cup wheel

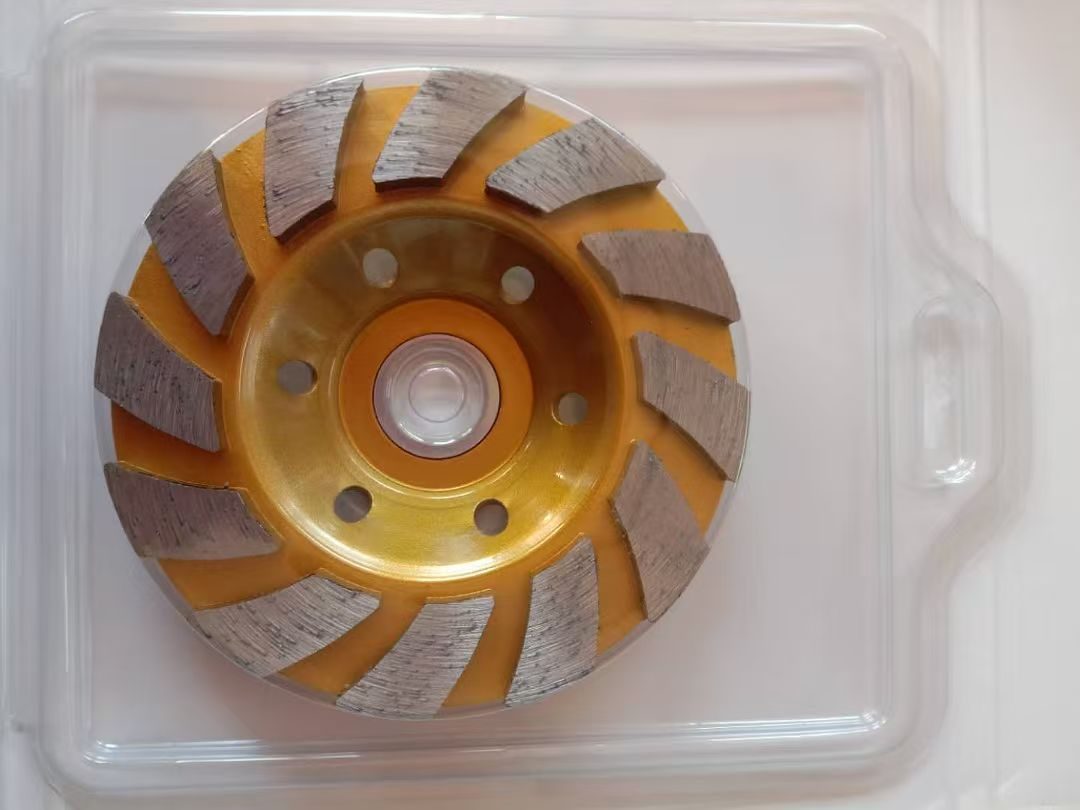

  2. 02A single-row turbo diamond cup wheel, gold-painted with one ring of swept segments, in its blister packSingle-row turbo cup wheel

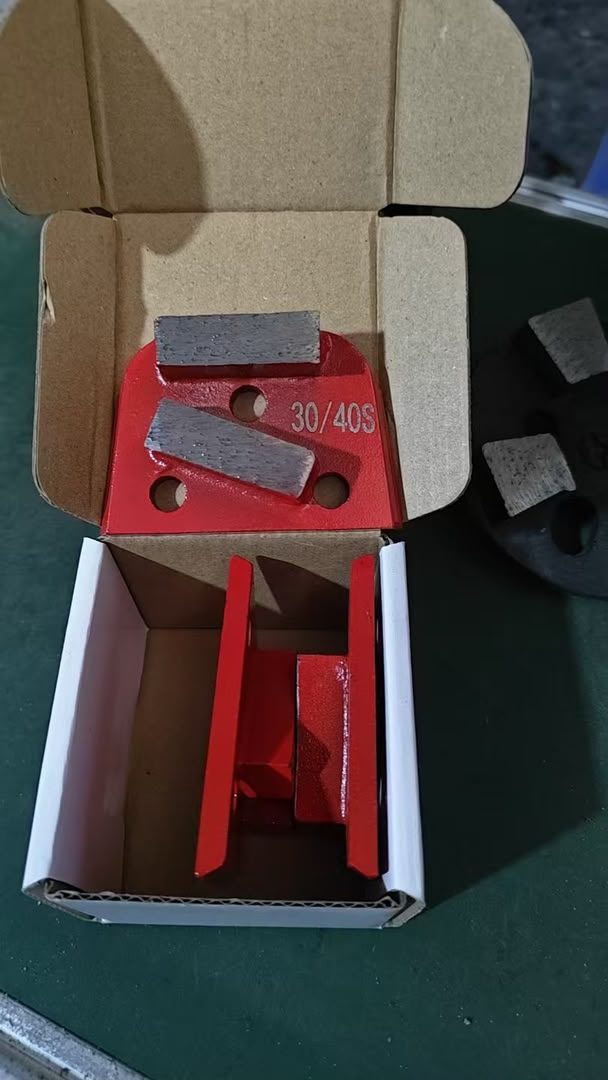

  3. 03A red trapezoid grinding shoe stamped 30/40S, two diamond segments brazed to its face, lying in its boxTrapezoid segment, 30/40

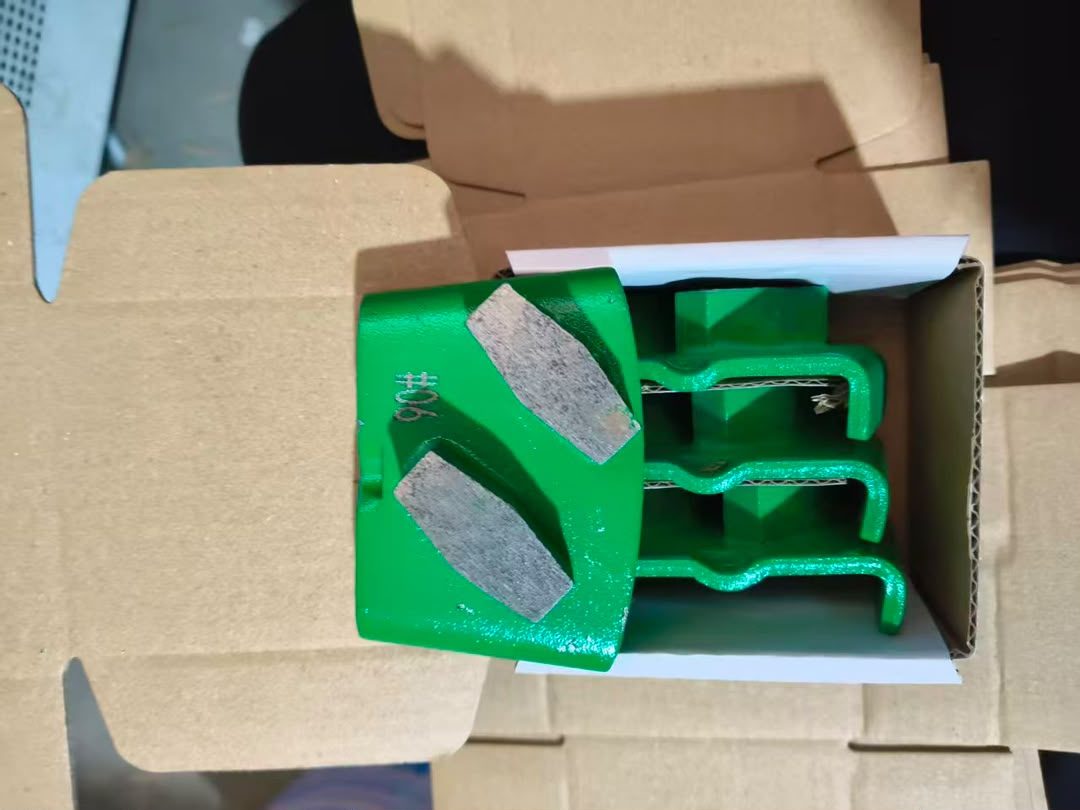

  4. 04A green cast hexagonal-segment grinding block with two diamond pads, in an opened cartonHexagonal segment block

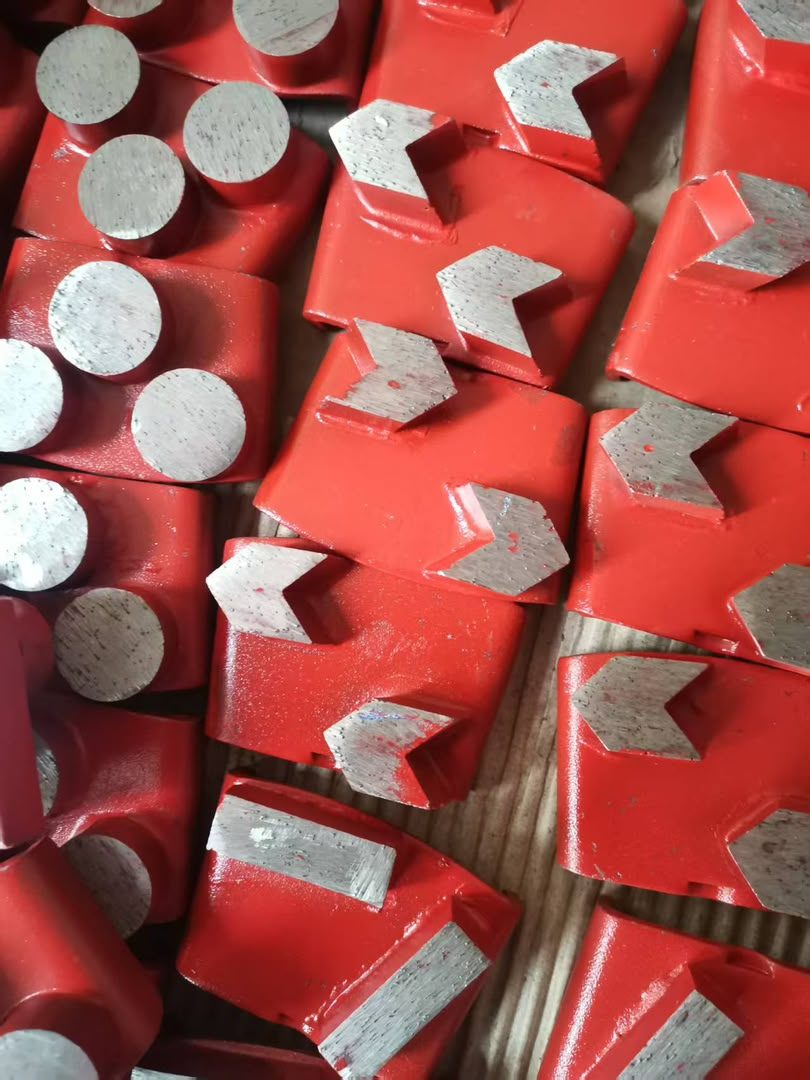

  5. 05A tray of red diamond grinding bits, round and chevron segments, packed face upDiamond bits, full set

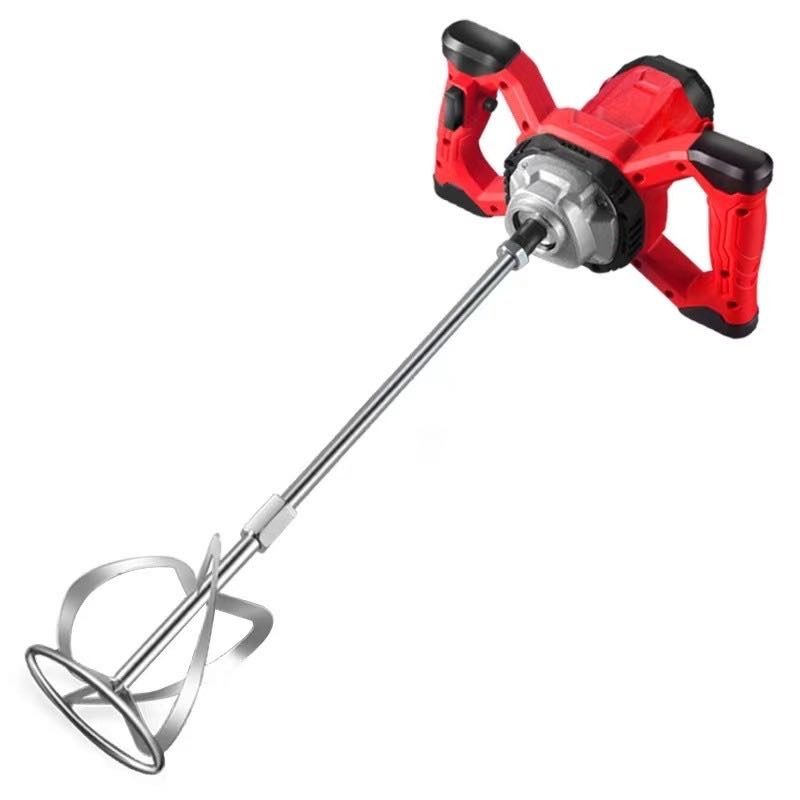

  6. 06A red two-handed paddle mixer with a long shaft and a helical mixing basketForced-action paddle mixer

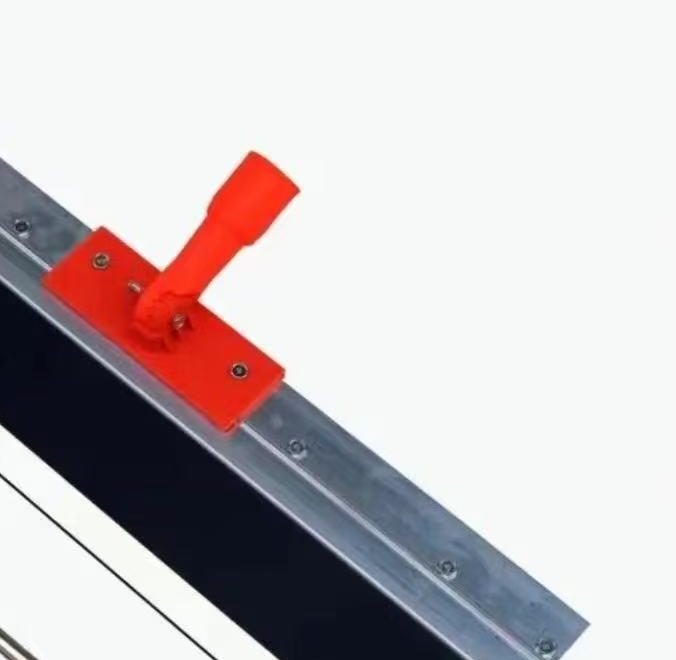

  7. 07The head of a notched resin squeegee: a black blade in an aluminium bar with a red cast handleGauge rake & squeegee

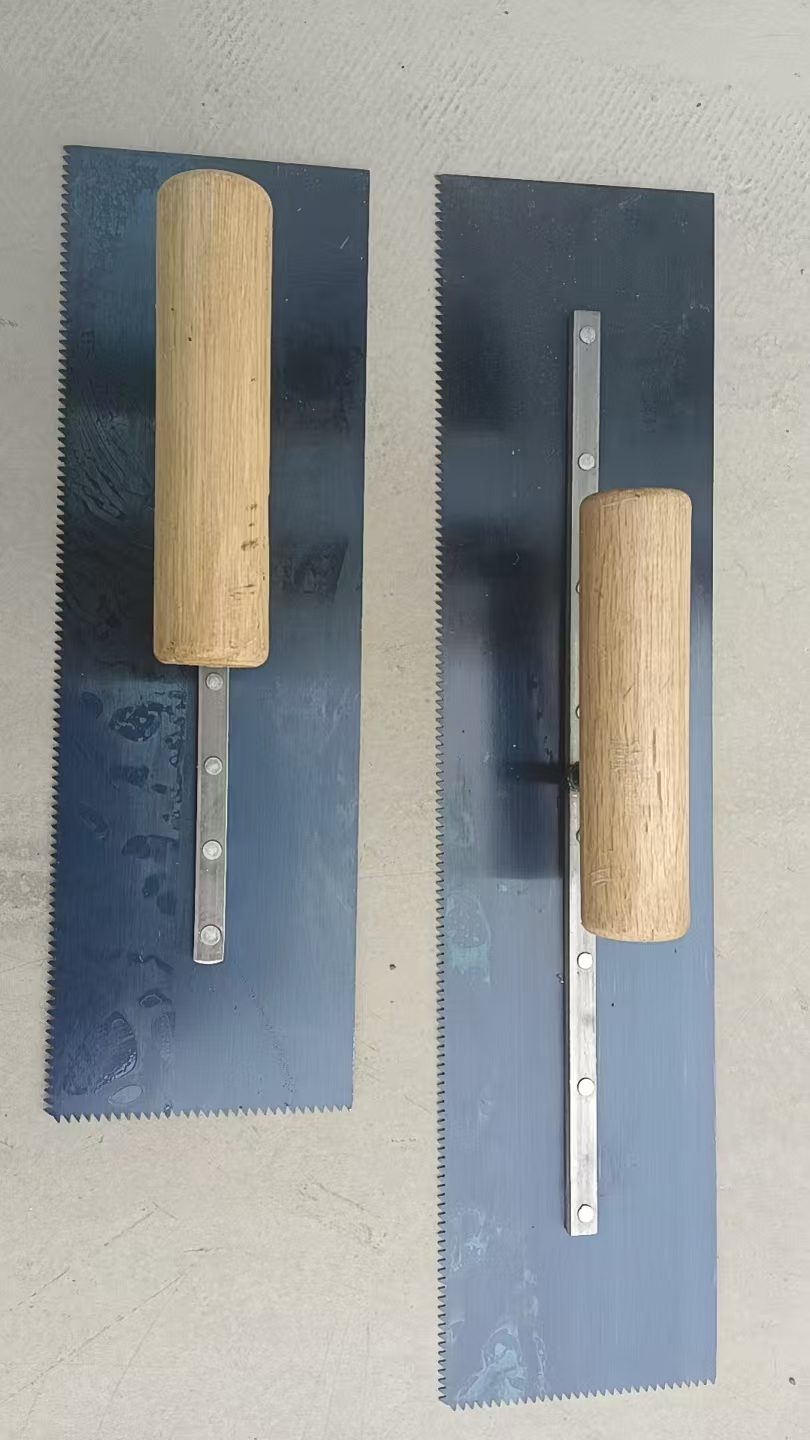

  8. 08Two blued steel notched trowels with wooden handles, laid on a concrete slabNotched finishing trowels

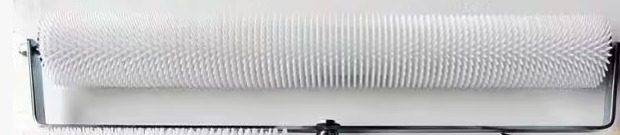

  9. 09A long white nylon spike roller on its stirrup frameDe-aerating spike roller

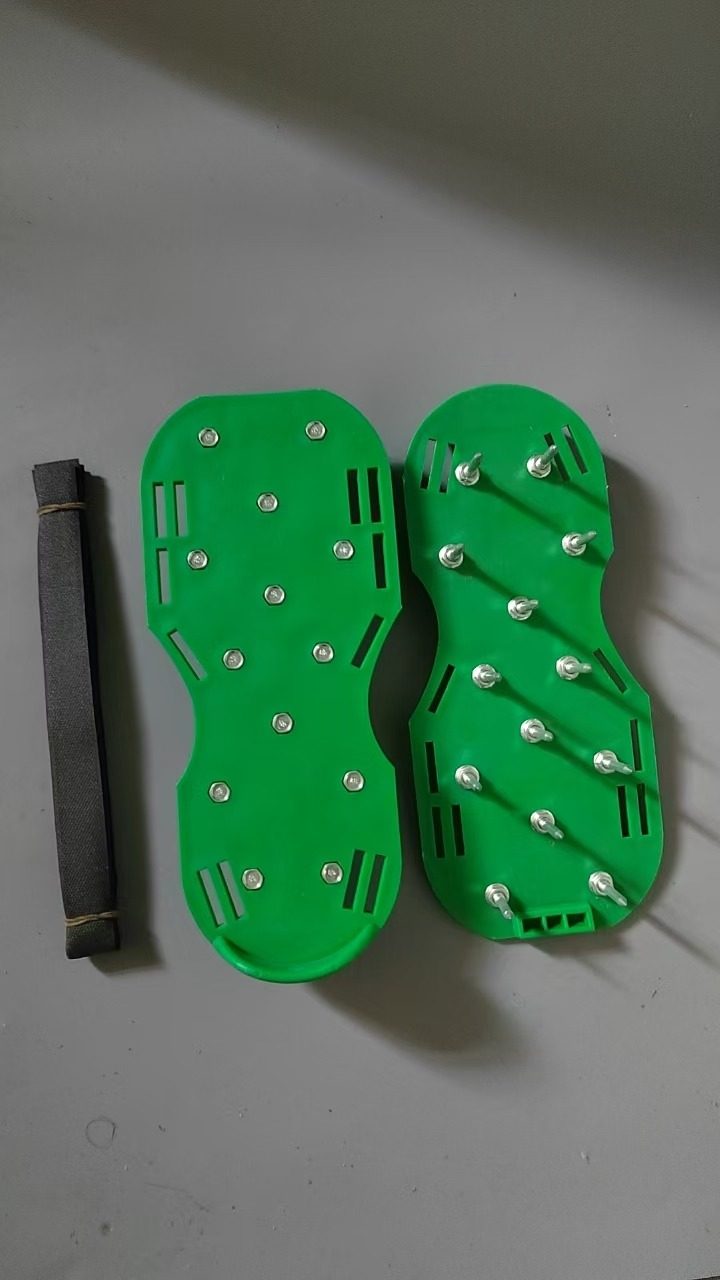

  10. 10A pair of green plastic spike shoes with steel spikes and a strap, on a floorSpike shoes

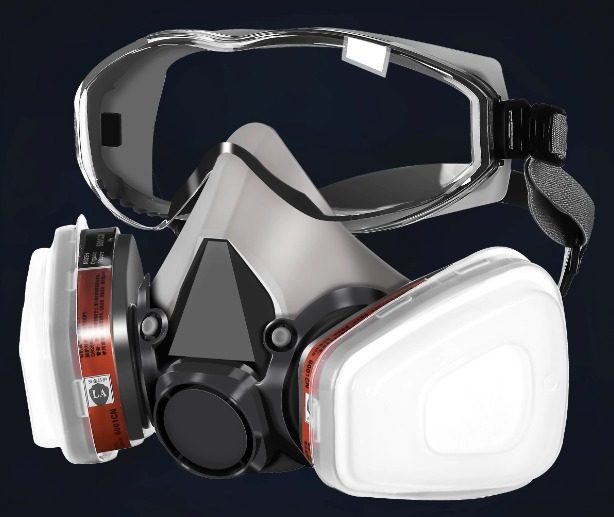

  11. 11A silicone half-mask respirator with twin cartridges and sealed gogglesSilicone half-mask respirator

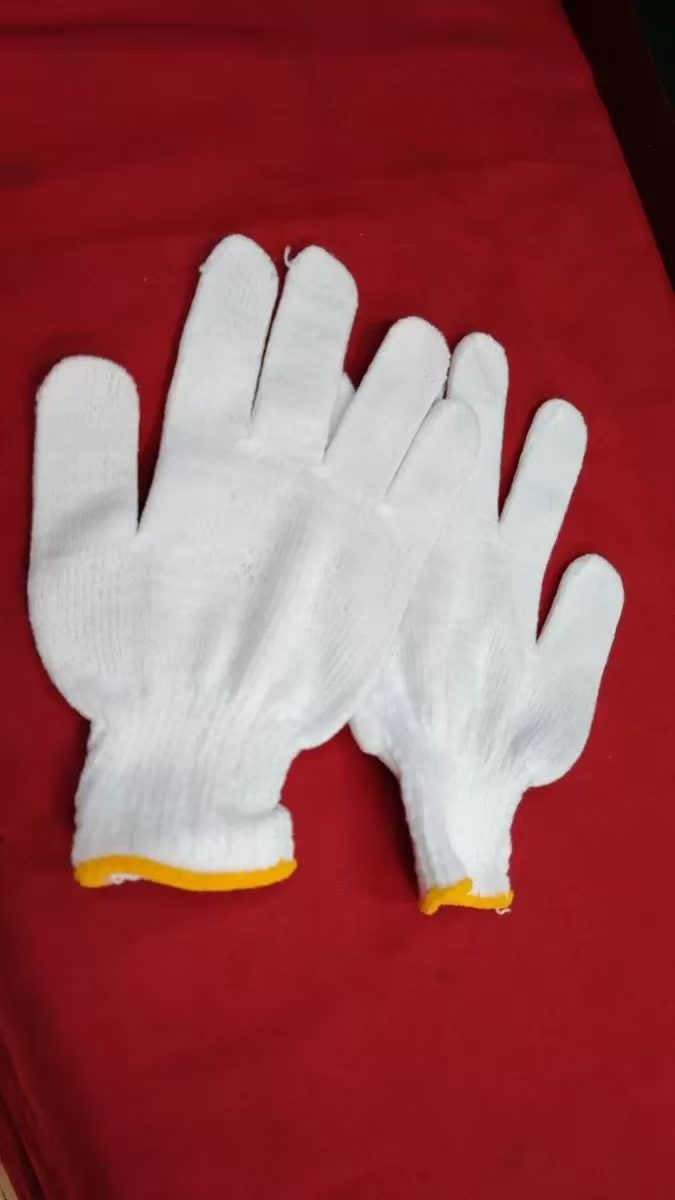

  12. 12A pair of white knitted cotton gloves with yellow cuffsKnitted cotton gloves

ICut

Nothing is poured onto a slab we have not opened first. Everything in this group is a wear part: it is bought to be used up.

01

Double-row cup wheel

Diameter
180 mm
Rows
Double
Bond
Hard / green

The first pass on a rough slab, and the only head that goes near a wall line or a corner a planetary machine cannot reach.

Without itThe edges stay high. You see it as a dark border round every room the day the light goes on.

02

Single-row turbo cup wheel

Diameter
100 mm
Row
Single, turbo
Segments
12

The edge’s second pass. The double row opens the perimeter fast and leaves its own scratch behind; this takes that out and brings the border down to the same finish as the open floor.

Without itA ground border that is flatter than the rest of the room but rougher, and it takes the coating differently; you read it as a halo round the walls once the floor is wet.

03

Trapezoid segment, 30/40

Grit
30/40
Segments
2 per shoe
Per head
9

The coarse metal bond that takes the slab open and leaves the profile a primer can key into. Three passes before a single pail is opened.

Without itAn acid etch instead: an hour of work instead of a day, and a floor that comes off in sheets inside two years.

04

Hexagonal segment block

Profile
Hex
Grit
90
Fit
Quick-change

The refining head. It takes out the scratch the coarse pass left, so the primer sits on a flat plane rather than a ploughed one.

Without itGrinder swirls telegraph through the topcoat and read as circles under any raking light.

05

Diamond bits, full set

Range
16 – 400
Bond
Metal & resin
Carried
Spare set

The whole ladder, carried on every job. Grit is chosen off the slab in front of us, not off the quote.

Without itOne grit for every floor, which means the wrong grit for most of them.

IIMix

Two minutes decide the next ten years. Most failed floors we are called out to repair failed in the pail, not in the tin.

06

Forced-action paddle mixer

Speed
400 rpm
Cycle
2 min
Decant
Clean pail

Two minutes at a controlled speed with the sides scraped, then decanted into a clean pail so nothing unmixed rides the walls into the floor.

Without itSoft patches that never cure. They are invisible on day one and obvious by month three.

IIILay

From here the resin is live and the clock is running. These four are what stand between a pour and a finished floor.

07

Gauge rake & squeegee

Blade
570 mm
Set to
2 mm
Tolerance
±0.2 mm

This is what decides whether you paid for 2 mm of resin and got 2 mm. The notch is set to the spec before the pail is opened.

Without itResin spread by eye: thick where it was easy, thin where it mattered, and billed the same either way.

08

Notched finishing trowels

Blade
450 mm
Notch
V
Steel
Blued spring

For the work the rake cannot reach (coves, thresholds, the metre nearest a wall), held at the same film as the open floor.

Without itA ridge where the edge work meets the pour, right where the light from the door lands on it.

09

De-aerating spike roller

Width
500 mm
Spikes
11 mm nylon
Window
Within 10 min

Run across the wet film inside the open time to let the air the mix carried in escape before the resin stiffens over it.

Without itPinholes. Thousands of them, each one a place the floor can be lifted from later.

10

Spike shoes

Spikes
25 mm
Fit
Strapped
Carried
One pair a man

They are what lets a man stand in a live pour at all. The holes they leave close behind him while the resin is still moving.

Without itThe floor is laid from the edges by someone who cannot walk on it, and the joins show where he stopped.

IVProtect

Silica and amine hardener are the two things on site that hurt people. We show the kit because most quotes never mention it.

11

Silicone half-mask respirator

Cartridge
A2 P3
Face
Silicone
Eyes
Sealed

Worn for the grind and again for the pour. The cartridge is for solvent and amine vapour; the dust class is what the grind needs.

Without itSilica in the lungs, which is the one thing on this site that does not show up for twenty years.

12

Knitted cotton gloves

Gauge
7
Changed
Every coat
Carried
By the box

Changed between coats rather than washed. Hardener on a glove is hardener on the next surface that glove touches.

Without itContact dermatitis for the crew, and fingerprints in the finish for you.
